一座极为成功的酒店，其改造必须在不丢失原有特征的前提下进行，同时要在美学、可持续性和服务方面加以完善。基于以上原则，noa*事务所完成了对南蒂罗尔Pustertal山谷的Falkensteiner家庭度假酒店的改造工作。
A highly successful hotel has to be renovated without losing its identity, but rather strengthening it in terms of aesthetics, sustainability and services. This is the issue addressed by studio noa* in the redesign of the Falkensteiner Family Resort Lido in Casteldarne, in the Pustertal valley.
▼场地环境鸟瞰，Aerial view to the site©Alex Filz
这是一家有着悠久经营历史的酒店，也是Falkensteiner家族开办的第一家酒店。该项目旨在为既有酒店增加新的空间和功能，尤其是为年龄较小的客人创造游戏的场地，同时也为他们的父母提供放松的机会。阿尔卑斯山的优美环境是设计的一项关键点——整个综合体要以和谐的姿态融入其中。
It is a historic hotel, the first to be opened by the Falkensteiner family, which today runs a group of more than 30 hospitality properties across 6 countries. The aim of the project was to add new spaces and functionalities that would reinforce this vocation, creating a kind of playground for the little guests and, at the same time, a place where parents could relax. A defining point of the project was also the beautiful Alpine surroundings, in which the hotel complex was meant to blend in harmoniously.

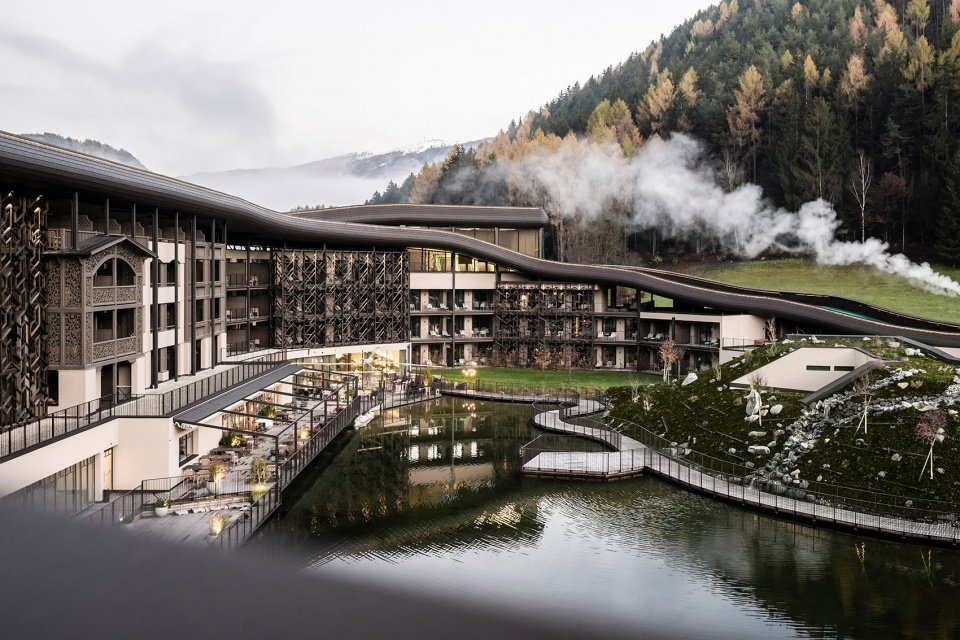

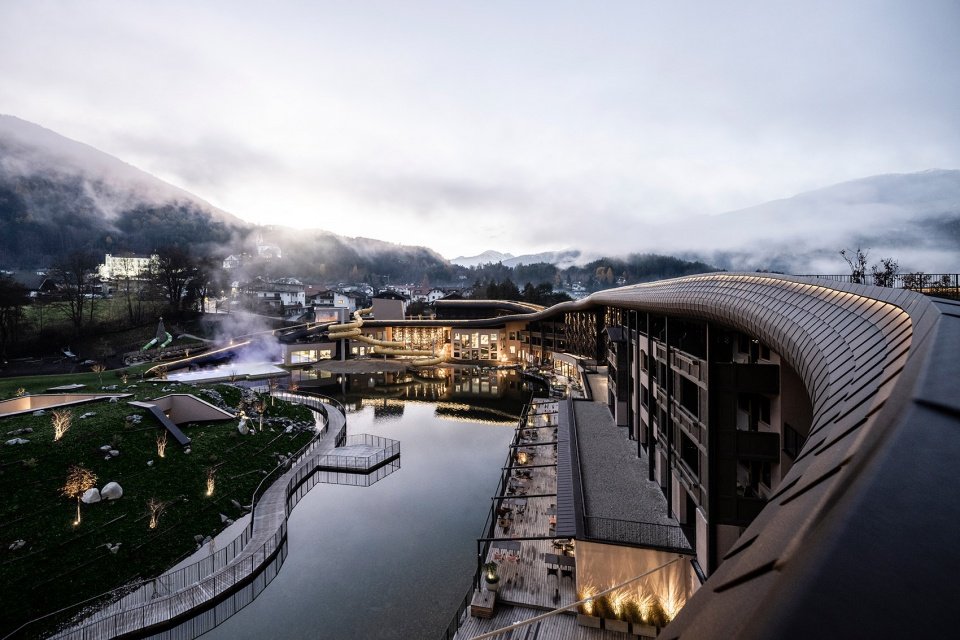

▼酒店外观，Hotel exterior view©Alex Filz
noa*事务所被委托担任新建筑的设计，他们创造性地将屋顶作为入手点，将旧建筑的传统屋檐替换为大尺度的波浪形结构，并使其覆盖全部新旧结构。新的屋面向两端倾斜，直至消失于地面，其上覆盖的植被使建筑成为一座与景观相融的“山丘”，同时兼具了滑雪场、冰场、游乐场、探险公园以及休闲和娱乐场地的功能。
The solution proposed by noa*, commissioned to design the new structure, surprisingly started with the roof: the traditional gable roof of the old hotel complex was replaced by a large wave structure that covers new and existing buildings, sloping down on both sides until it disappears into the ground. It is a kind of hill that blends in with the landscape by covering itself with vegetation, and that transforms into a ski slope, skating rink, playground, adventure park, leisure and recreation area.

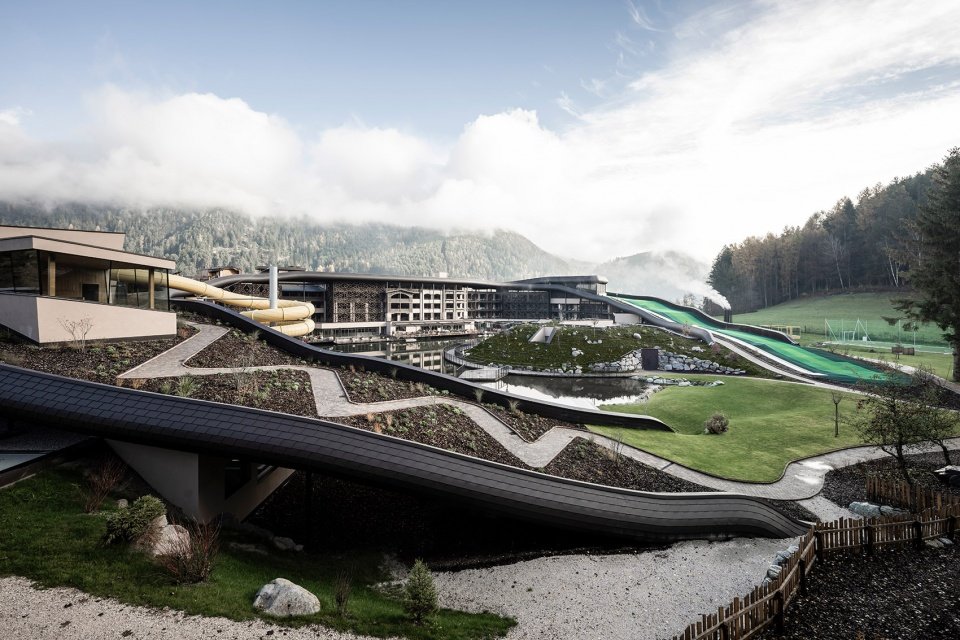

▼一座与景观相融的“山丘”，A “hill” that blends in with the landscape©Alex Filz

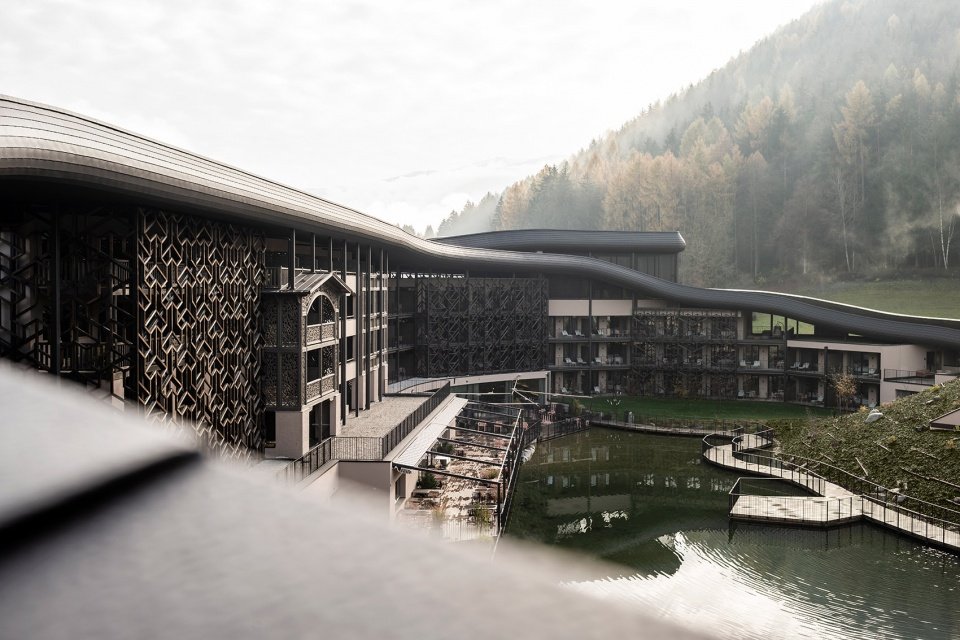

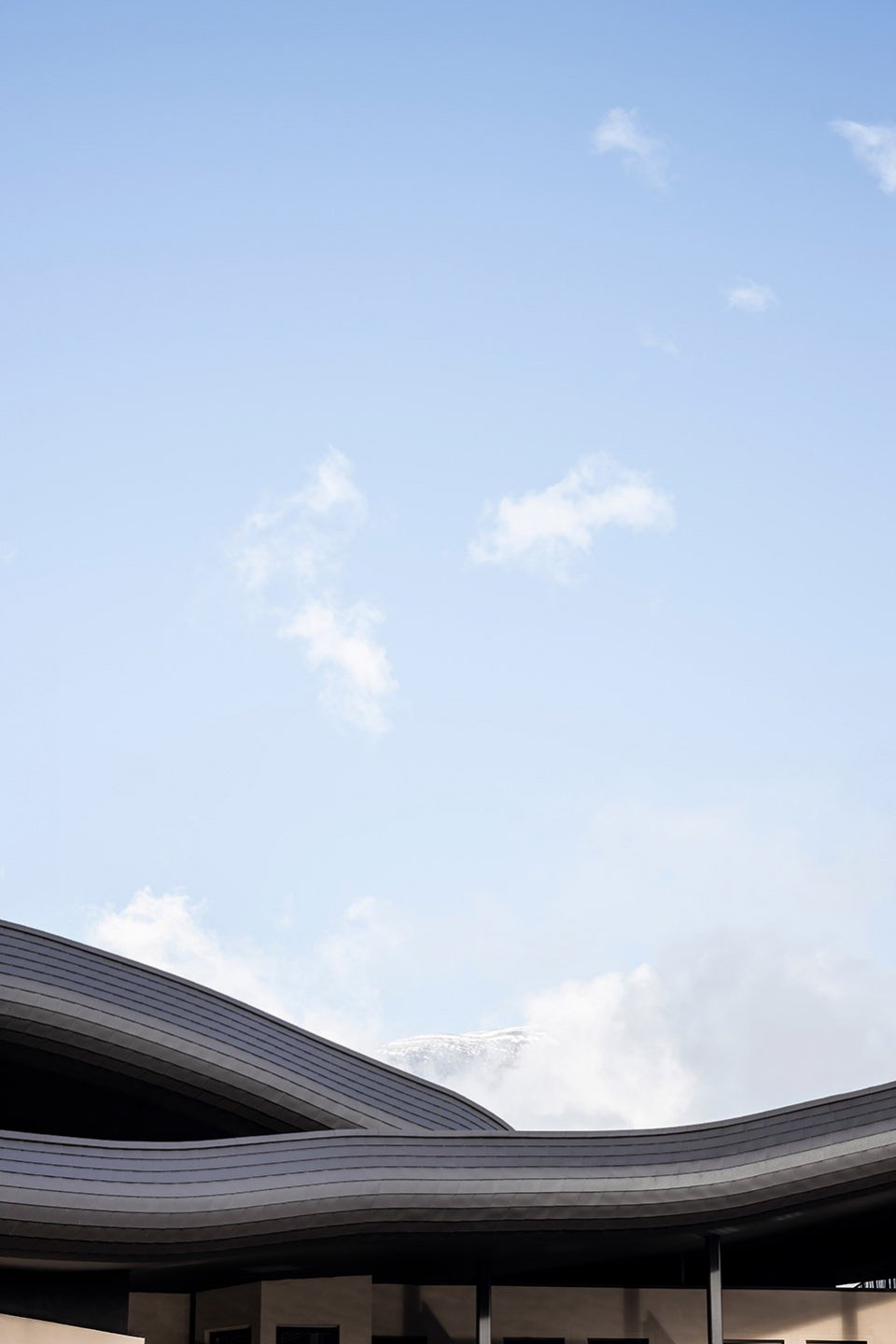

▼旧建筑的传统屋檐被替换为大尺度的波浪形结构©Alex Filz
The traditional gable roof of the old hotel complex was replaced by a large wave structure
在屋顶上游戏 | PLAYING ON THE ROOF
noa*为酒店打造的新屋顶横跨300米的距离，覆盖了4900平方米、中央高度为18米的空间。在建筑造型、尺寸和材料方面，设计均展现出高度的创新性。新建部分采用钢筋混凝土结构，在与旧结构的交汇处则使用了钢梁和木材。屋面被金属瓦覆盖，犹如第二层皮肤，完美地贴合了屋顶的曲线和起伏。
The roof designed by noa* spans 300 metres in length over an area of 4,900 square metres and reaches a height of 18 metres at its centre. It is a highly innovative element in terms of shape, size and materials used. The structure was made of reinforced concrete in the newly built part, while a system of steel beams and wood was used in the parts where it rests on the existing building. It is clad with metal shingles that, like a second skin, perfectly follow the curves and undulations of the roof.
▼开阔的屋面结合了一座设施齐备的休闲公园，The spacious roof is a recreational park offering various stations for sports and entertainment©Alex Filz

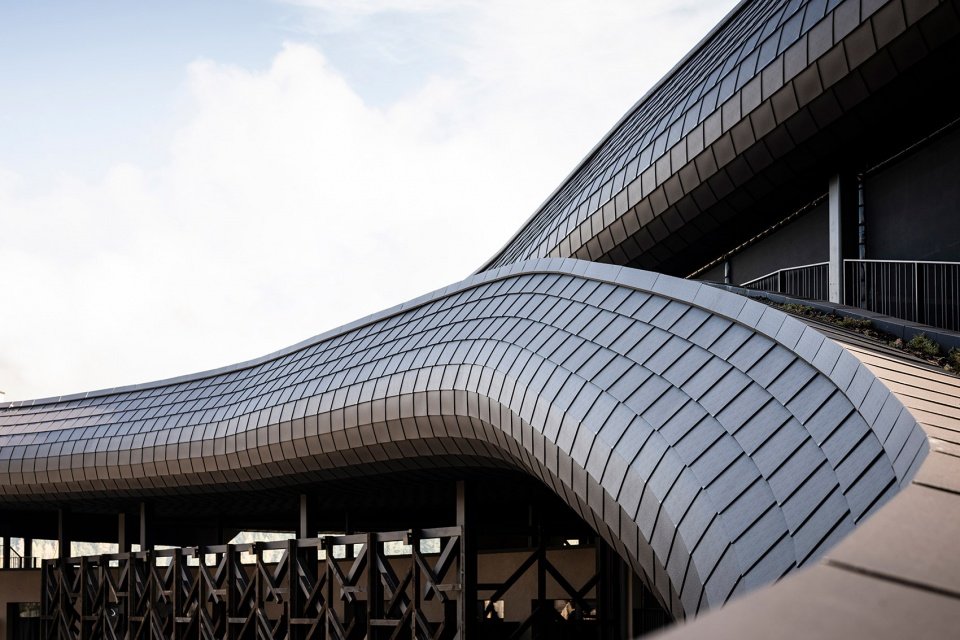

▼新建部分的屋面被金属瓦覆盖，The roof structureis clad with metal shingles©Alex Filz
一条环形路径贯穿了开敞的屋面，客人们可以在这里愉快地散步，如同游览一座设施齐备的休闲公园。屋顶的东侧设有163米长的滑雪坡道，并提供地毯式传送带。该场地向度假区的全体游客开放，但尤其适合于儿童，它们可以跟随教练学习滑雪且无需离开酒店。此外，人造的地面使其可以在一年四季使用，包括位于屋顶平台最高处的滑冰场。
On this spacious roof, traversed by a loop trail where guests can enjoy a pleasant walk, is a recreational park offering various stations for sports and entertainment. One of the two slopes, the one to the east, is partly occupied by the 163-metre-long ski slope with a carpet lift. Whilst open to all resort guests, it is particularly suitable for children, who can learn to ski with the help of an instructor without leaving the hotel. Moreover, the artificial bottom allows year-round use, as is also the case with the skating rink, which is located at the highest point of the deck.

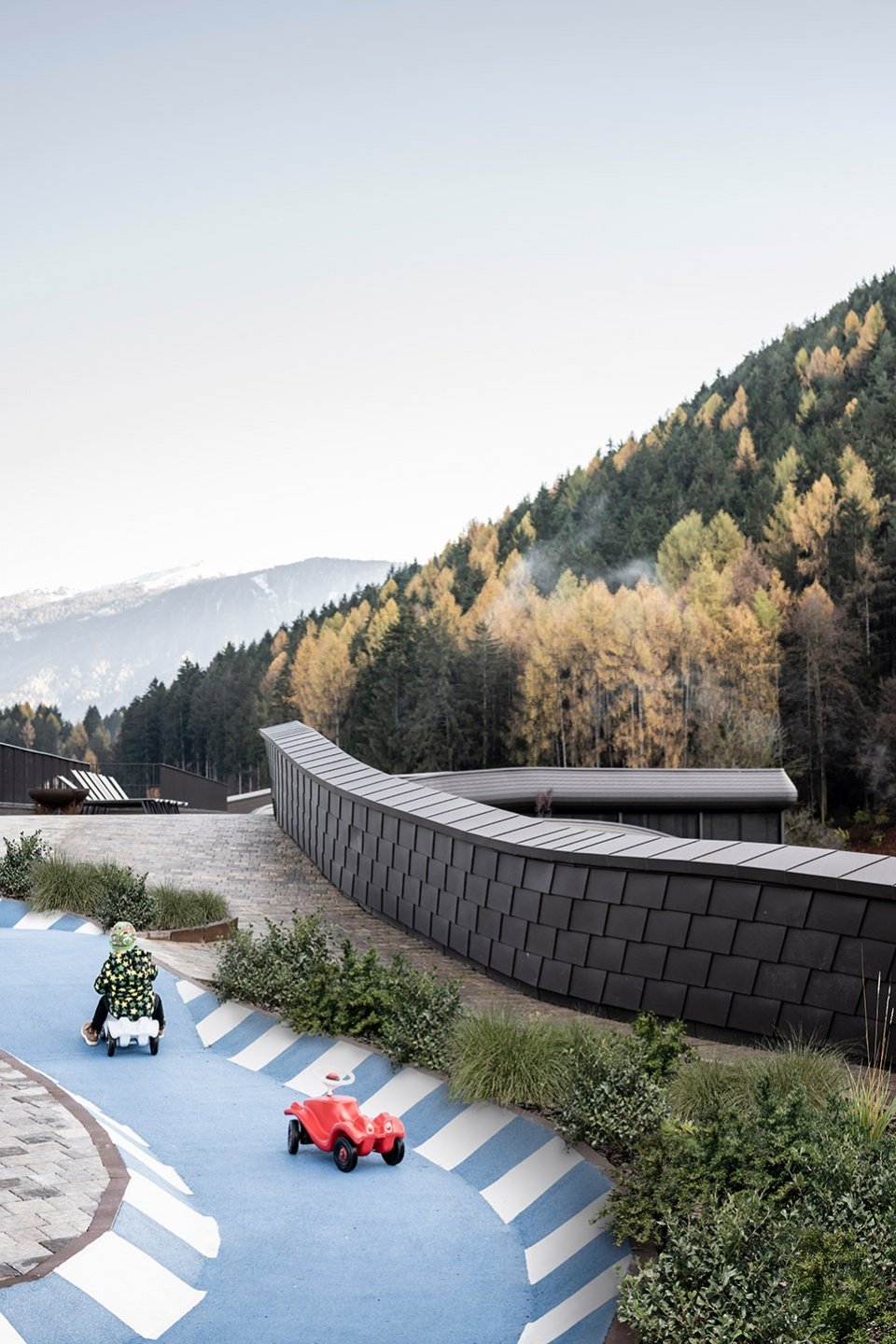

▼波比车跑道和屋顶轮廓，Bobby car track and detailed view to the roof©Alex Filz

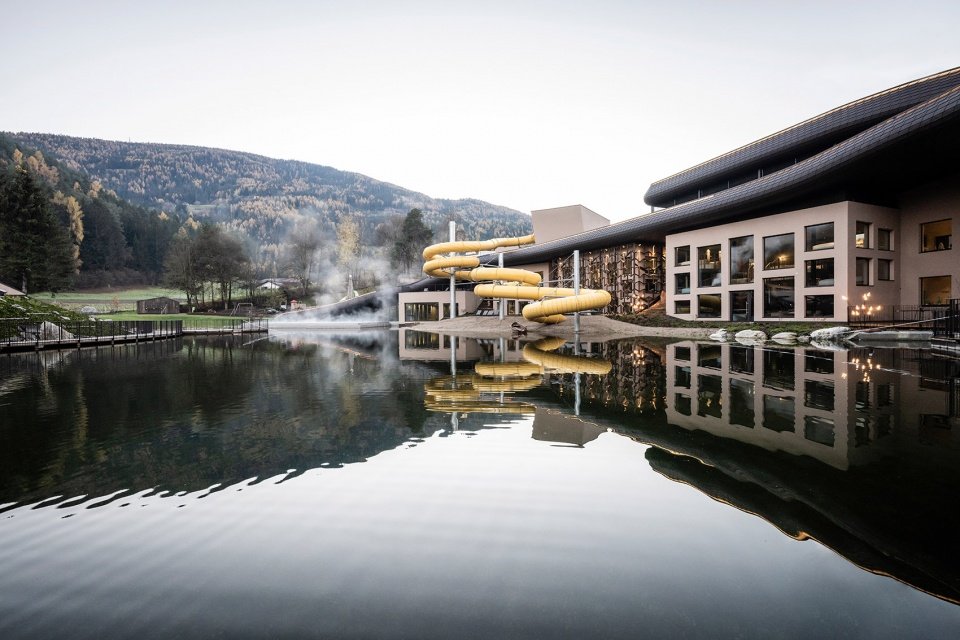

屋顶的另一侧（西侧）设有大型的家庭健身区、波比车跑道和高架的迷你探险公园，公园下方设有足球场、篮球场和其他活动场地。120米长的水滑梯蜿蜒于湖面，并通向位于地下的游戏和泳池区域。亮黄色的螺旋状结构使滑梯从周围景观中脱颖而出，成为这座致力于为年轻客人提供丰富娱乐和冒险设施的度假酒店的标志和象征。
整个建筑群中，休闲空间与绿化区域交错分布，与山谷内的森林建立了连续性。
On the other side, facing west, there is a large fitness area for the whole family, a bobby car track and an elevated mini adventure park, under which there is a field for football, basketball and other activities. Here, a 120-metre-long water slide winds its way over the lake to an area underground which is occupied by other play zones and the swimming pool. The slide stands out against the landscape with its bright yellow spirals and becomes the symbol of a place that is dedicated to the recreation and adventure of its young guests in every way.
Throughout the entire complex, recreational spaces are interspersed with green areas that create continuity with the forests in the valley.

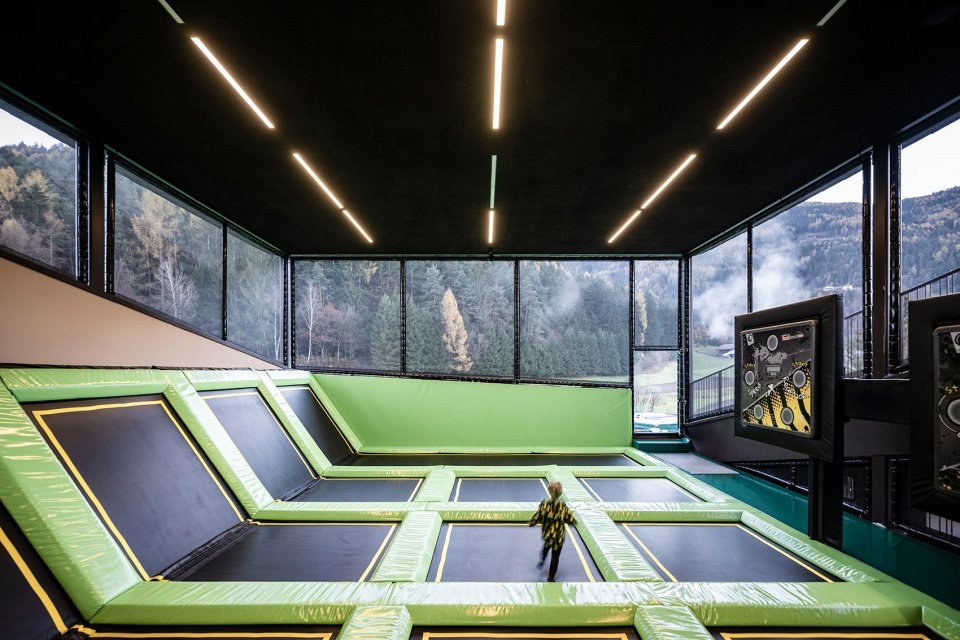

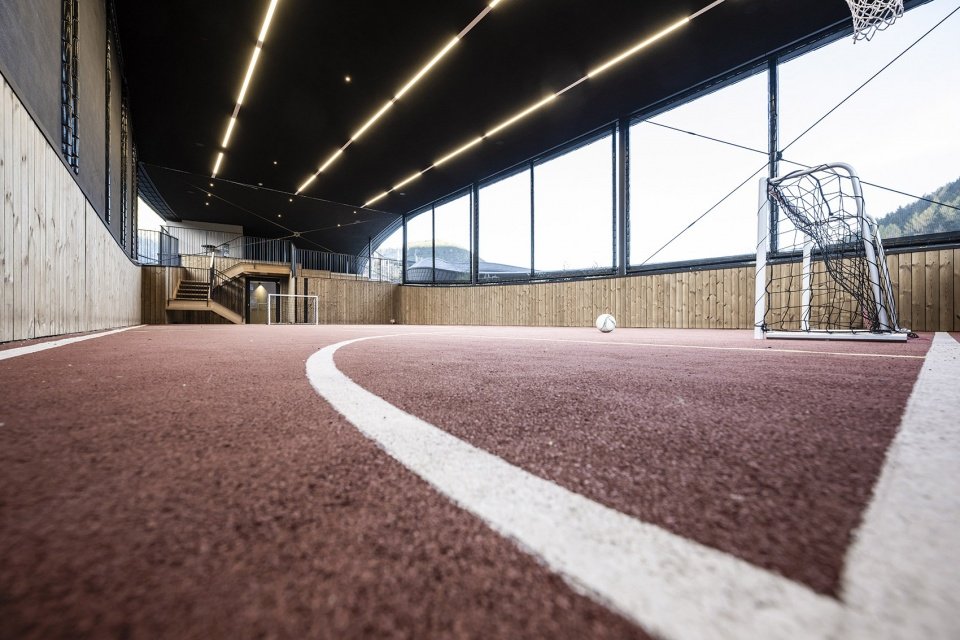

▼活动场地，Activity spaces©Alex Filz
全新美学 |A NEW AESTHETIC
除了将所有墙体结构统一为单一色彩之外，设计方案还强调使用天然木材的几何纹理来为建筑赋予节奏感，同时凸显阿尔卑斯地区历史悠久的谷仓建筑所具有的独特美感。
In addition to the choice of a single colour for all the wall structures, the use of geometric patterns in natural wood that give rhythm to the building, evoking the aesthetic of old alpine barns, should also be highlighted.

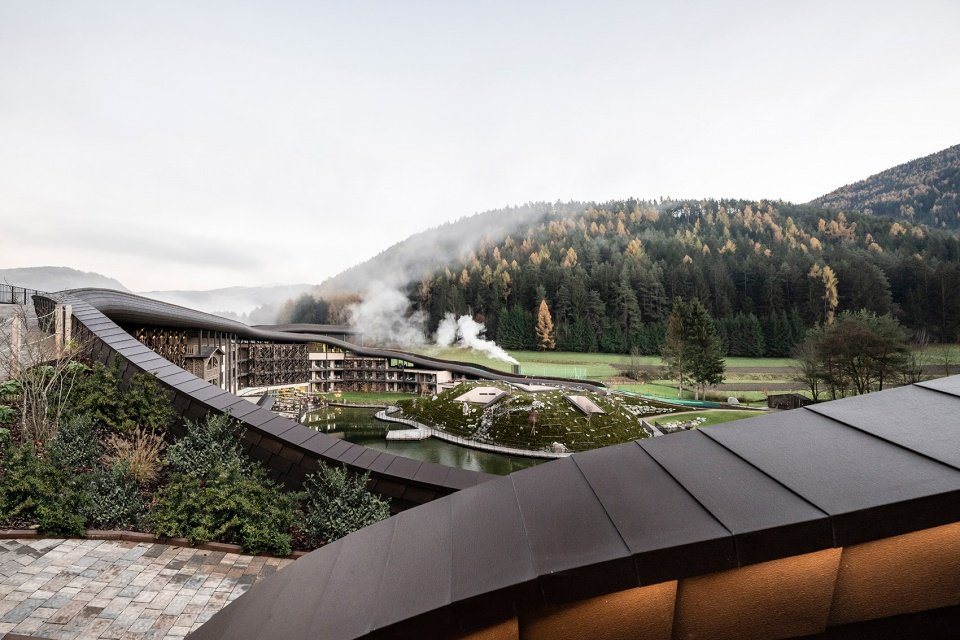

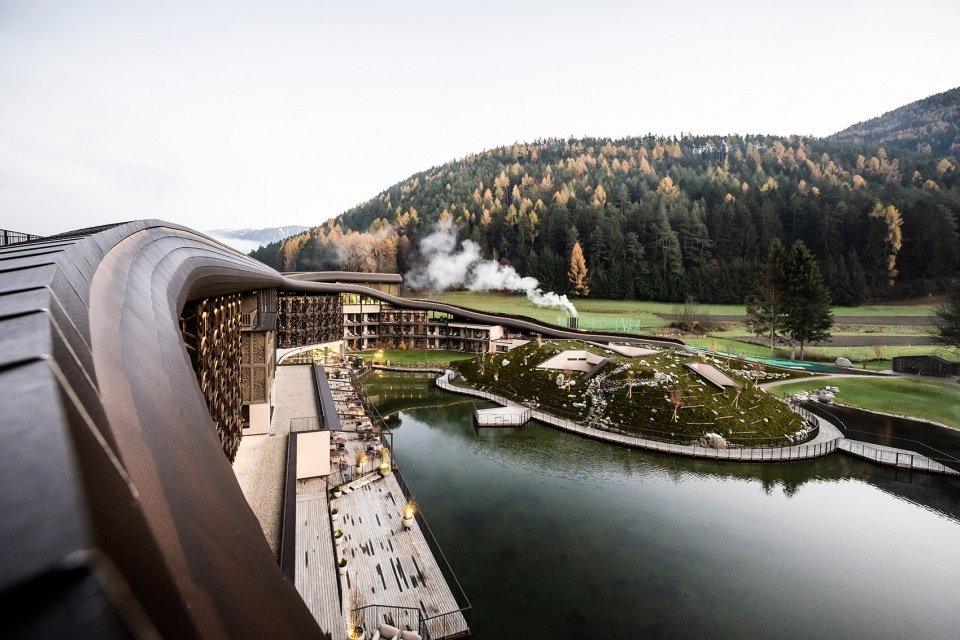

▼从屋顶望向湖泊，Overlook to the small lake from the roof©Alex Filz

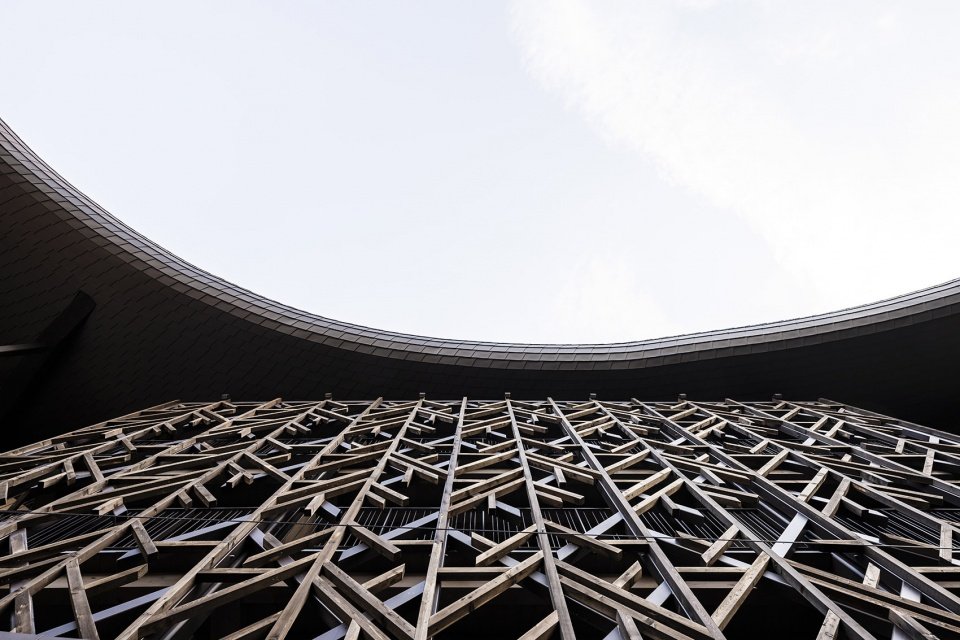

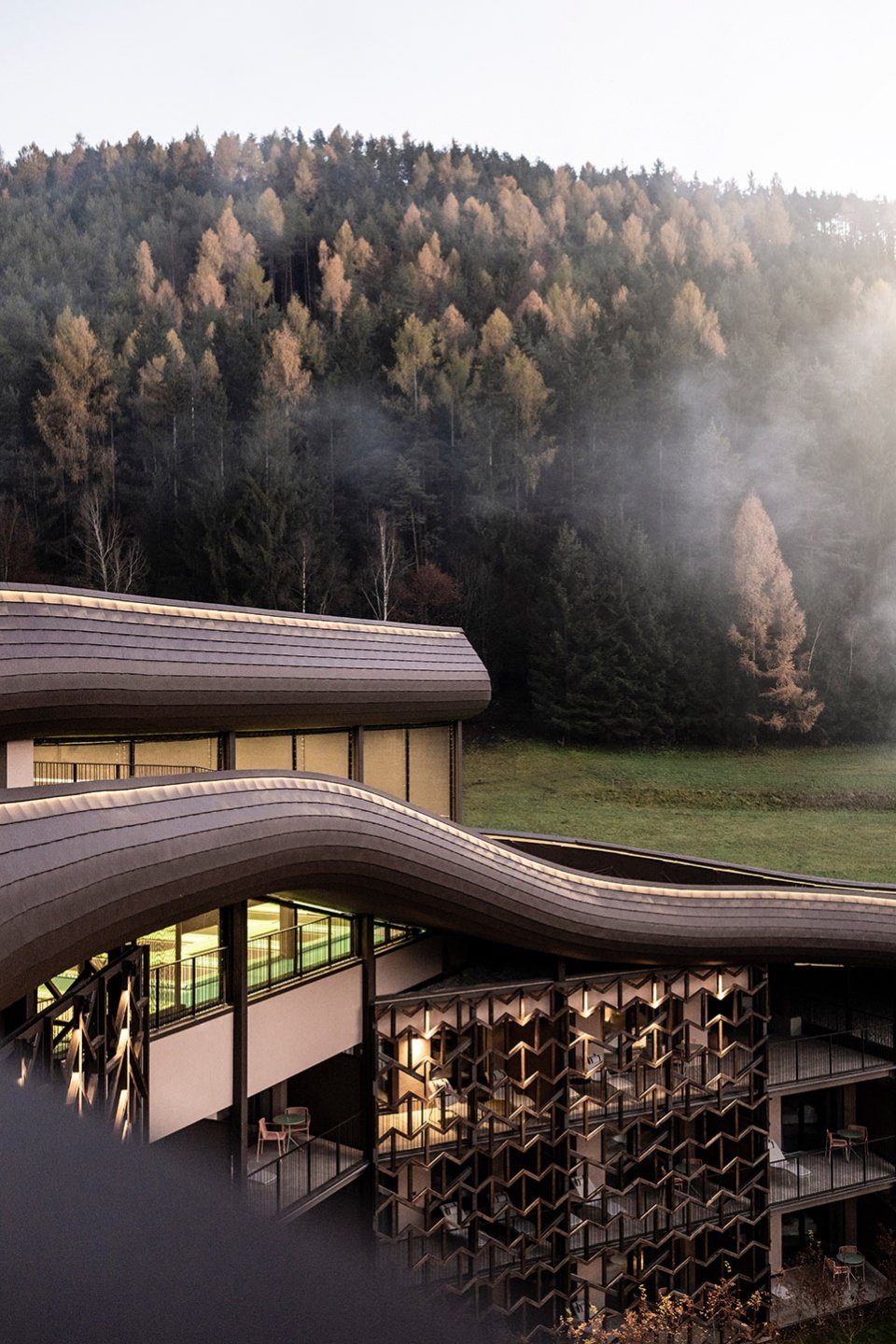

▼立面细节，Facade detailed view©Alex Filz

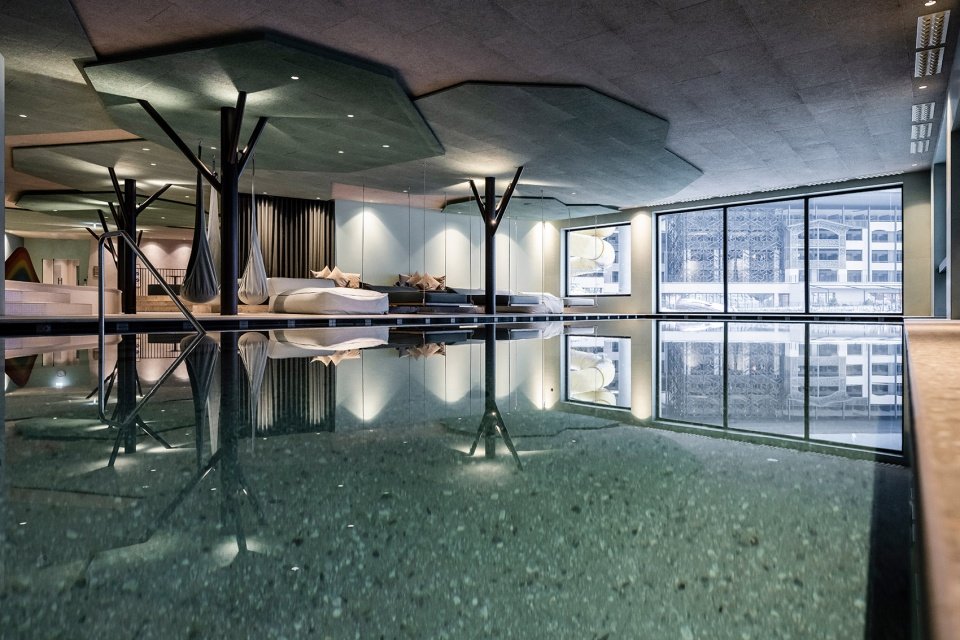

▼spa和疗养区，spa and wellness

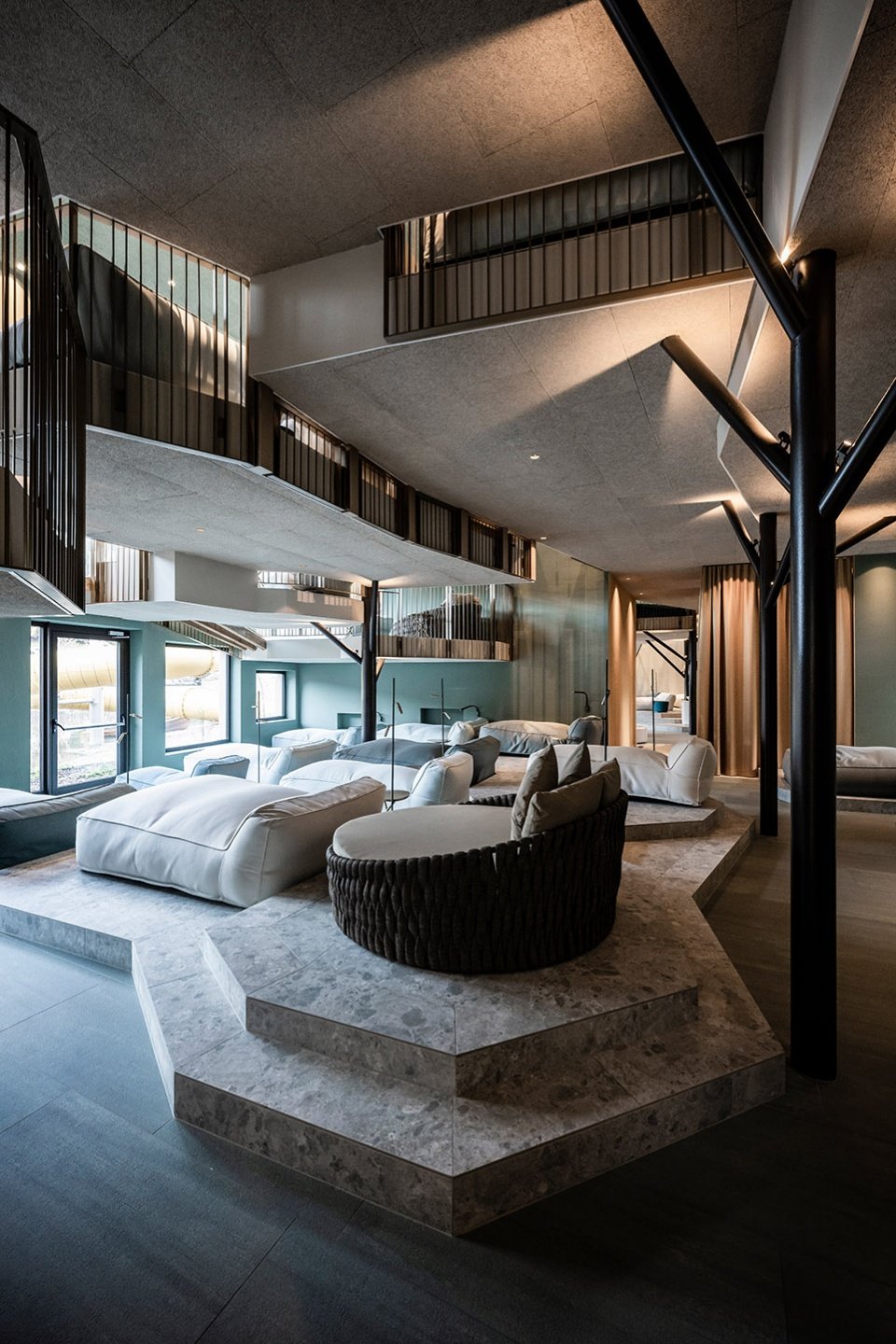

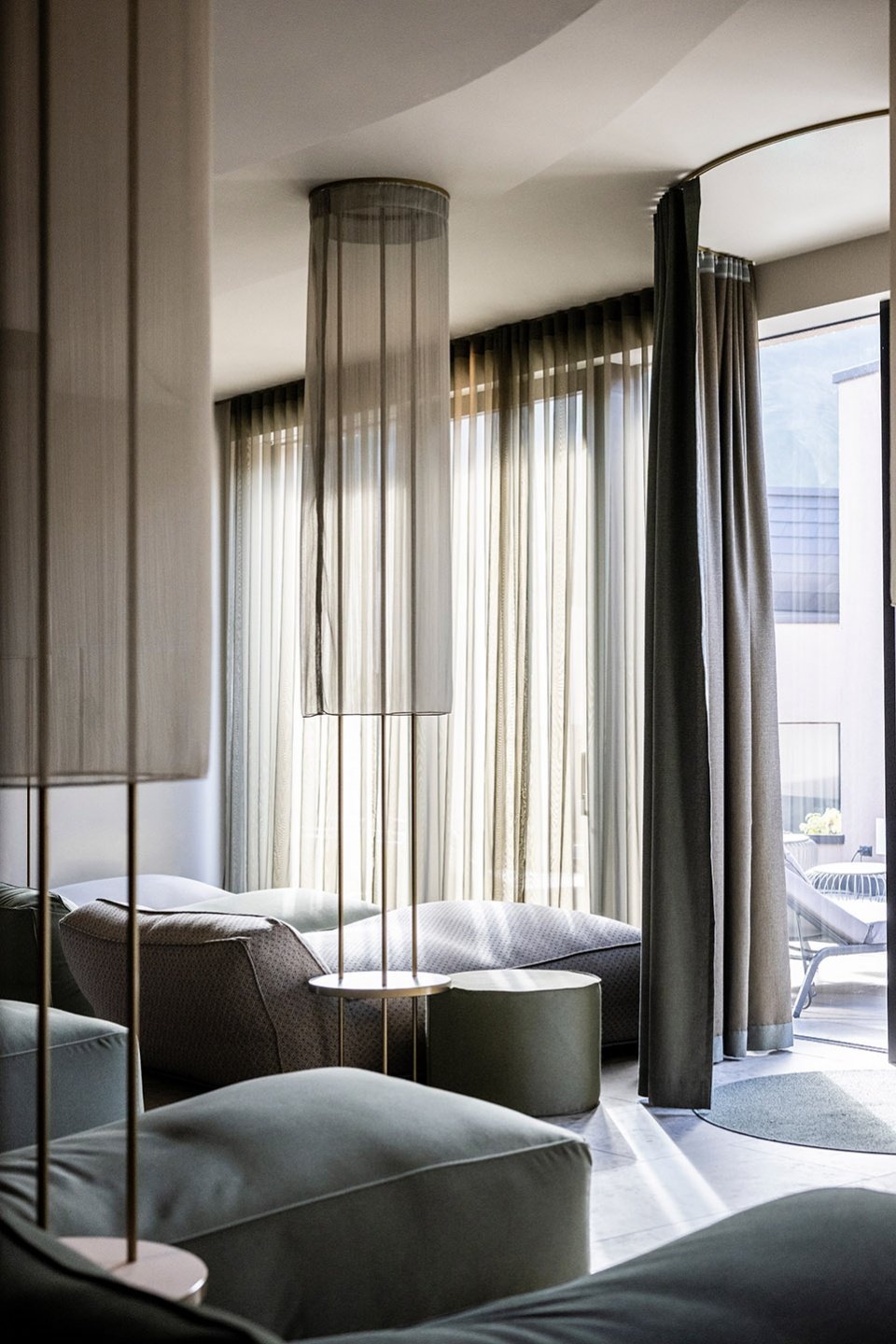

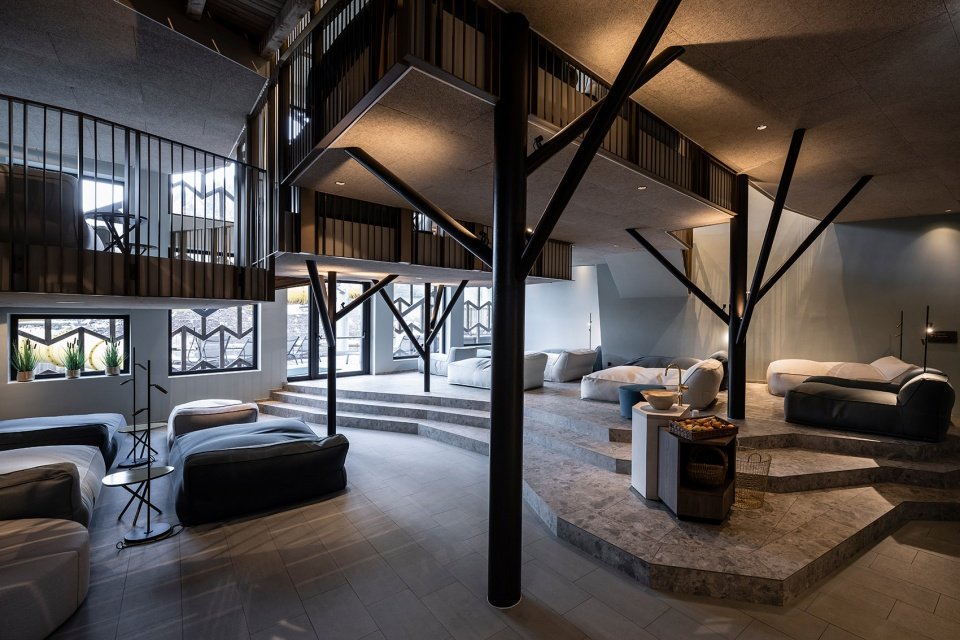

▼休闲空间，Leisure area©Alex Filz

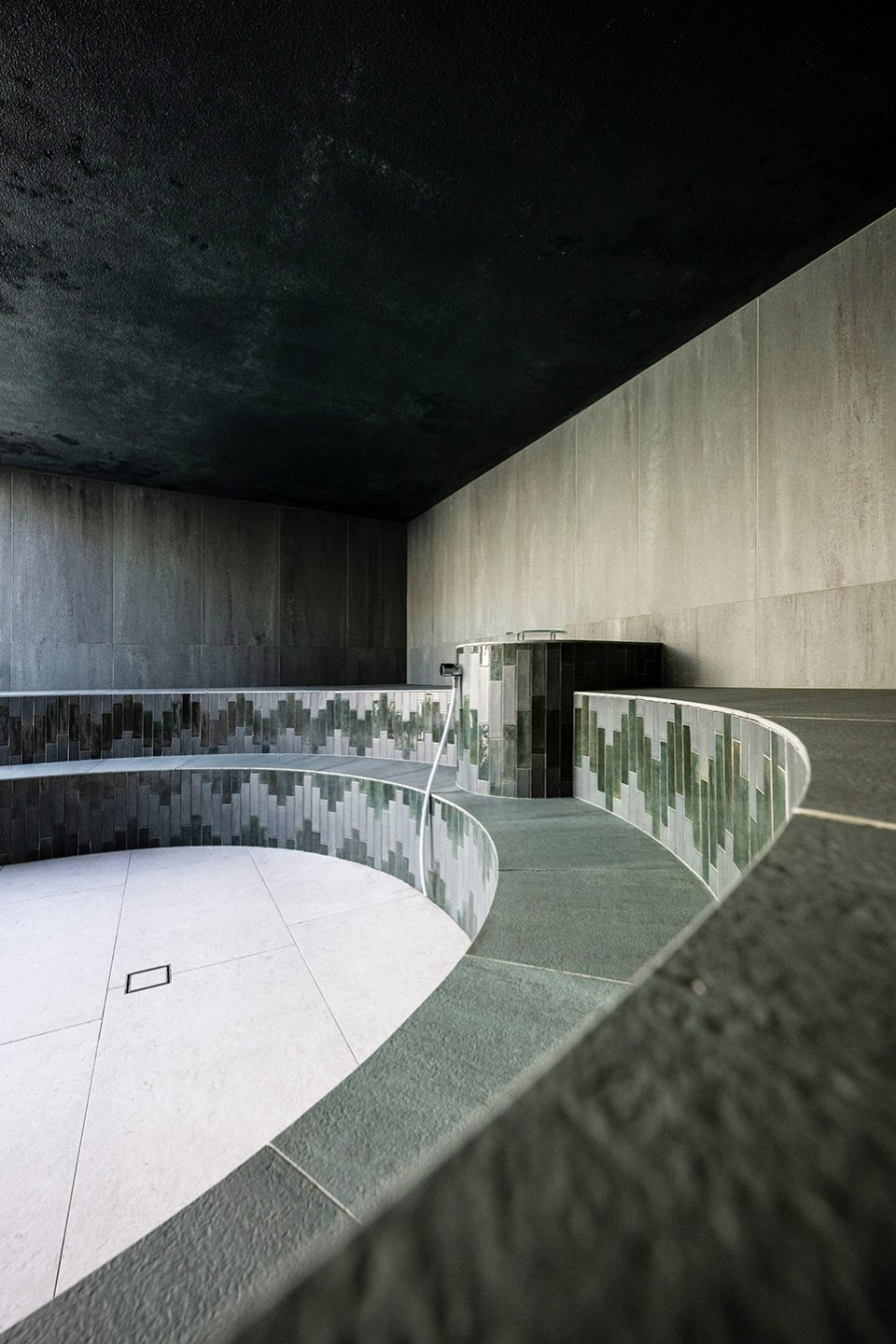

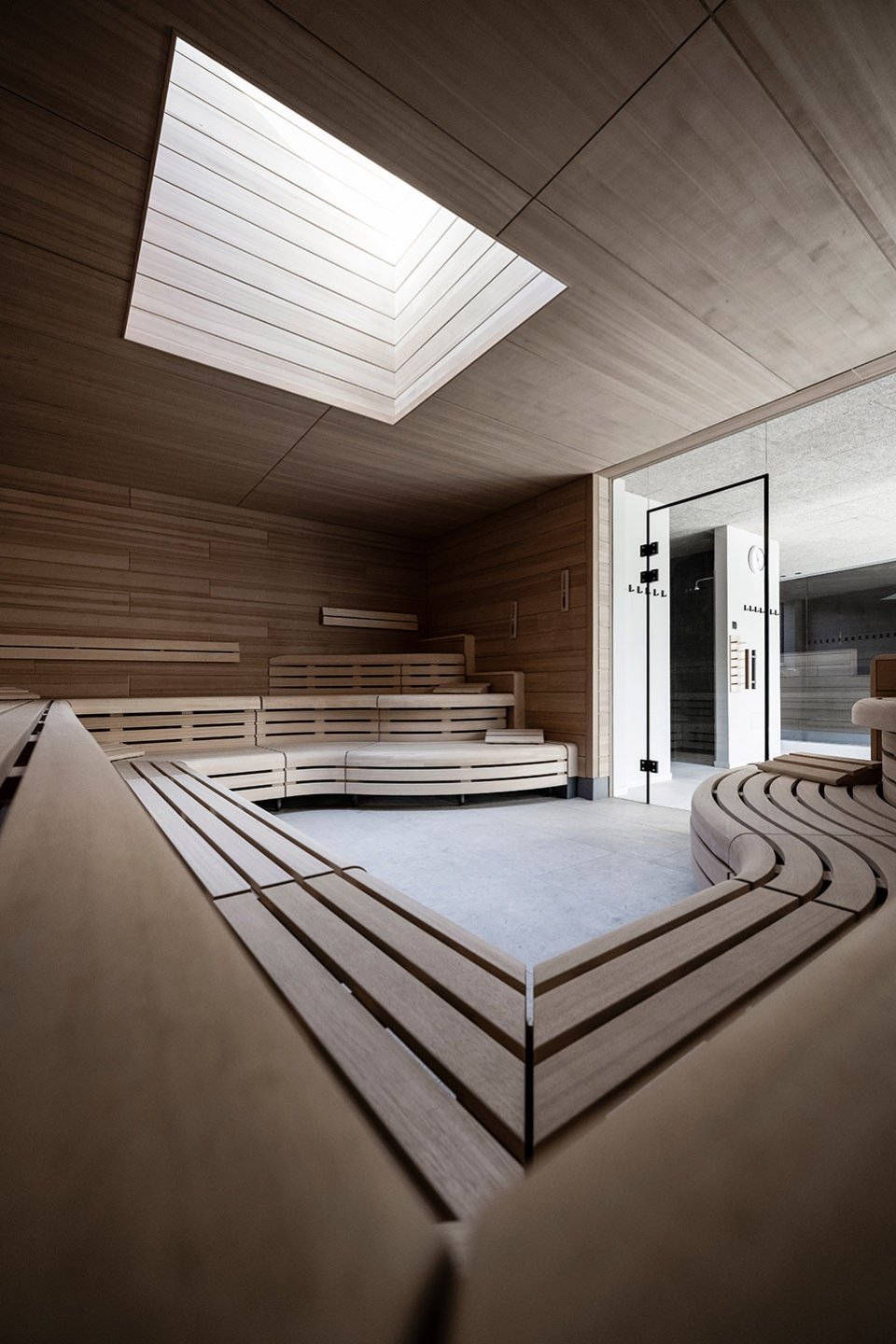

▼桑拿室，Sauna©Alex Filz
度假村和它所俯瞰的湖泊之间的关系也得到了“重新设计”：湖岸处修建了一座人造山丘，山下设有成年客人使用的spa区域。新增加的大露台敞开于湖泊，半户外的游泳池伸向镜子般的湖面，为客人带来真正沉浸在大自然中的体验。
The relationship between the resort and the small lake it overlooks has also been ‘redesigned’, with the creation of an artificial hill along one bank, under which the adults’ spa is located. A large new terrace opens out onto the lakefront and the partially covered swimming pool which overflows onto the water mirror, giving guests the sensation of being authentically immersed in nature.

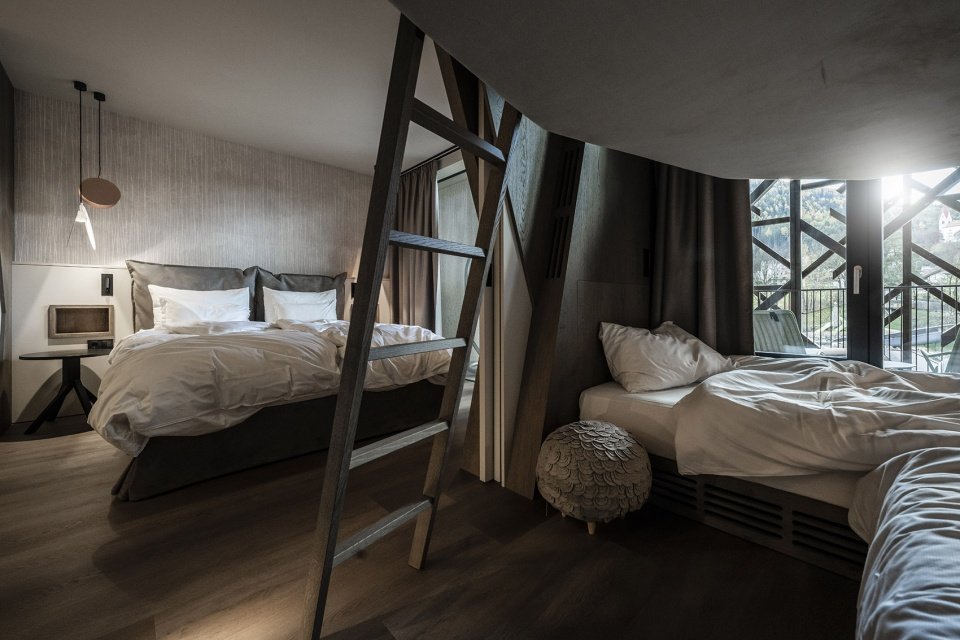

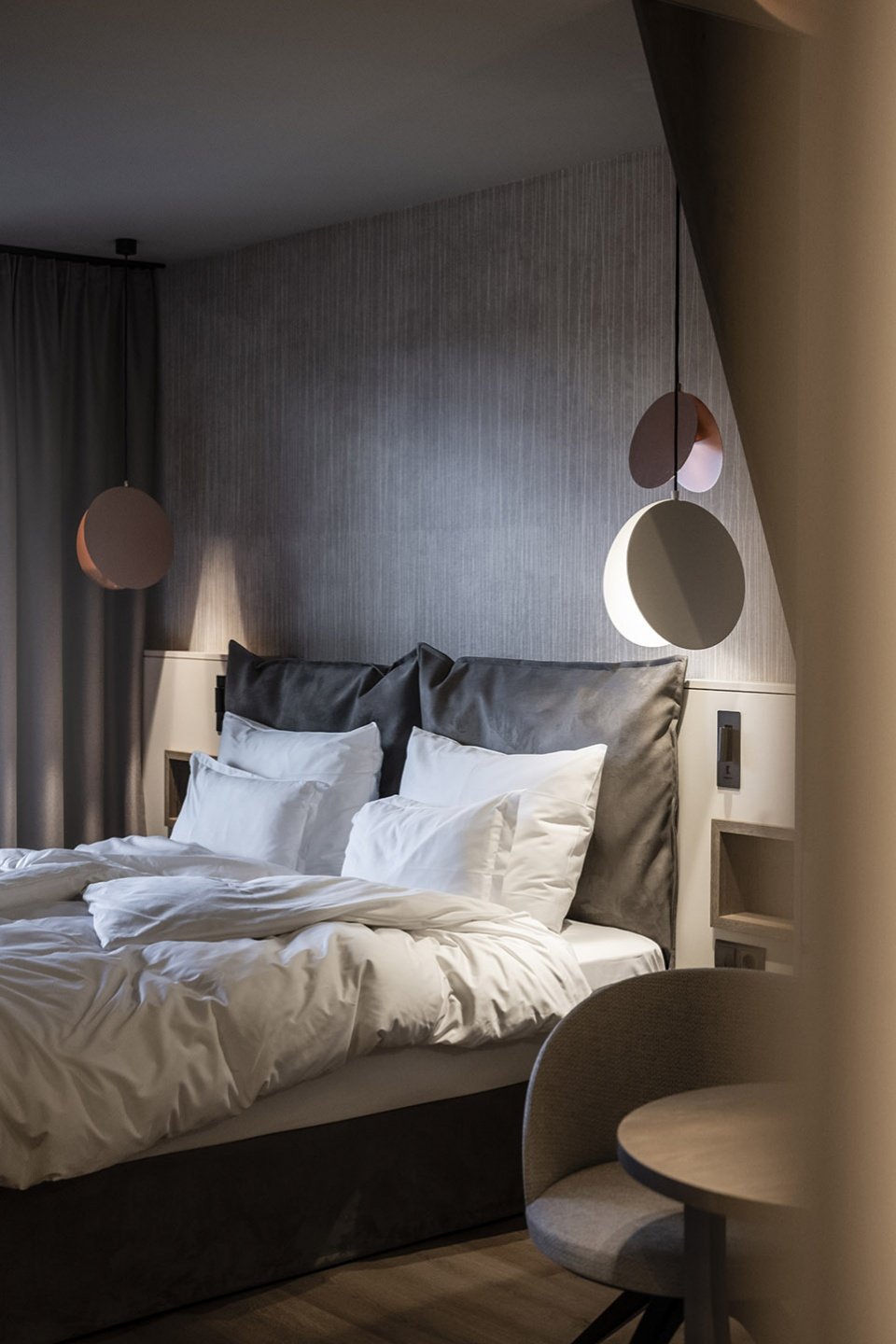

▼客房，Guest room©Alex Filz

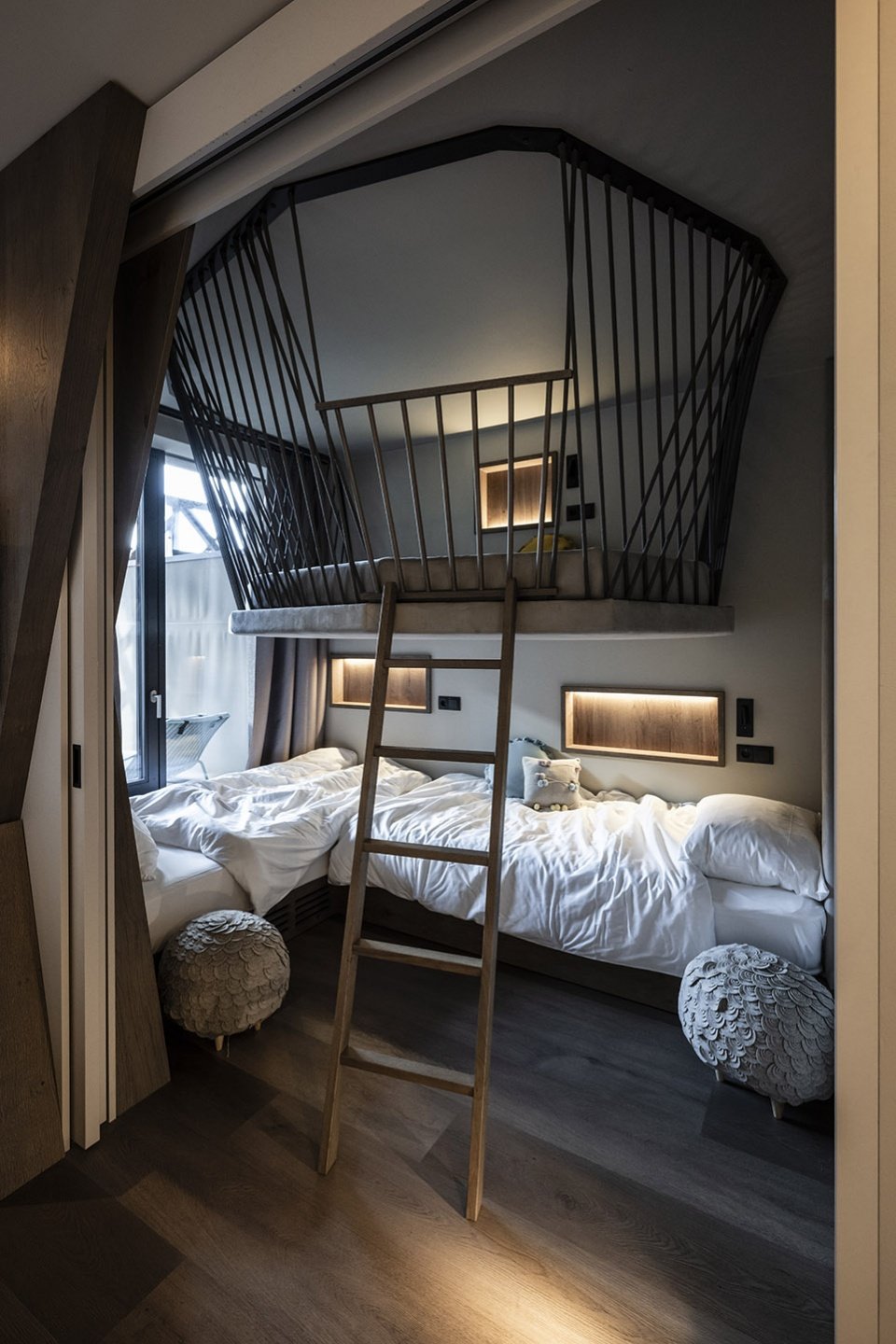

▼睡眠区，Sleeping area©Alex Filz

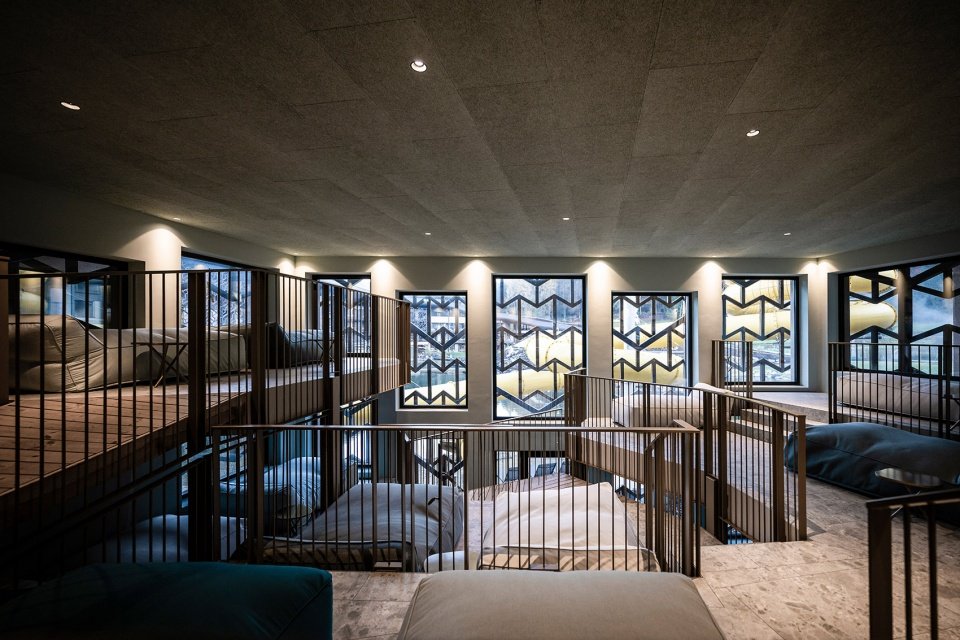

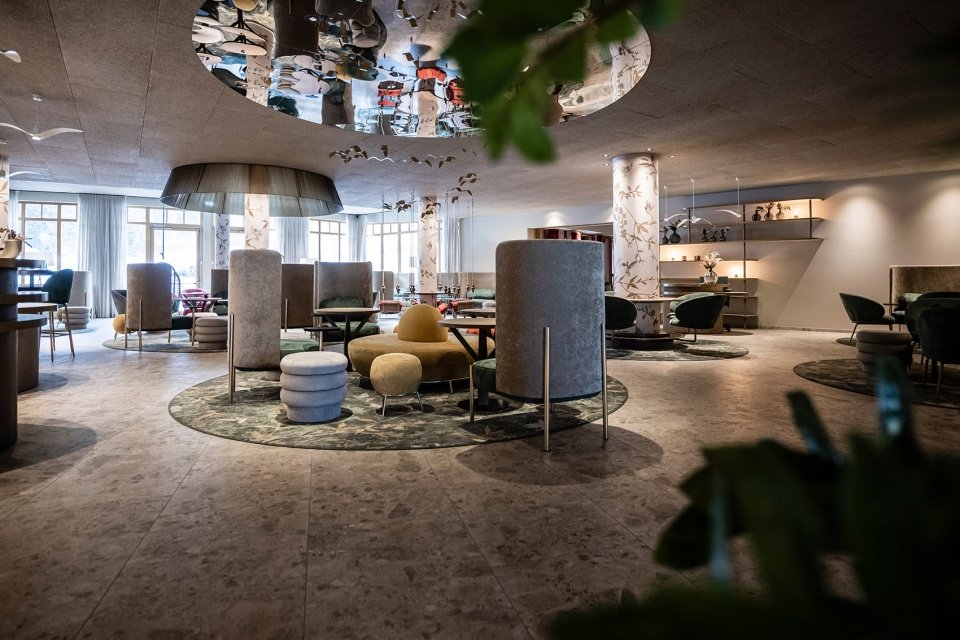

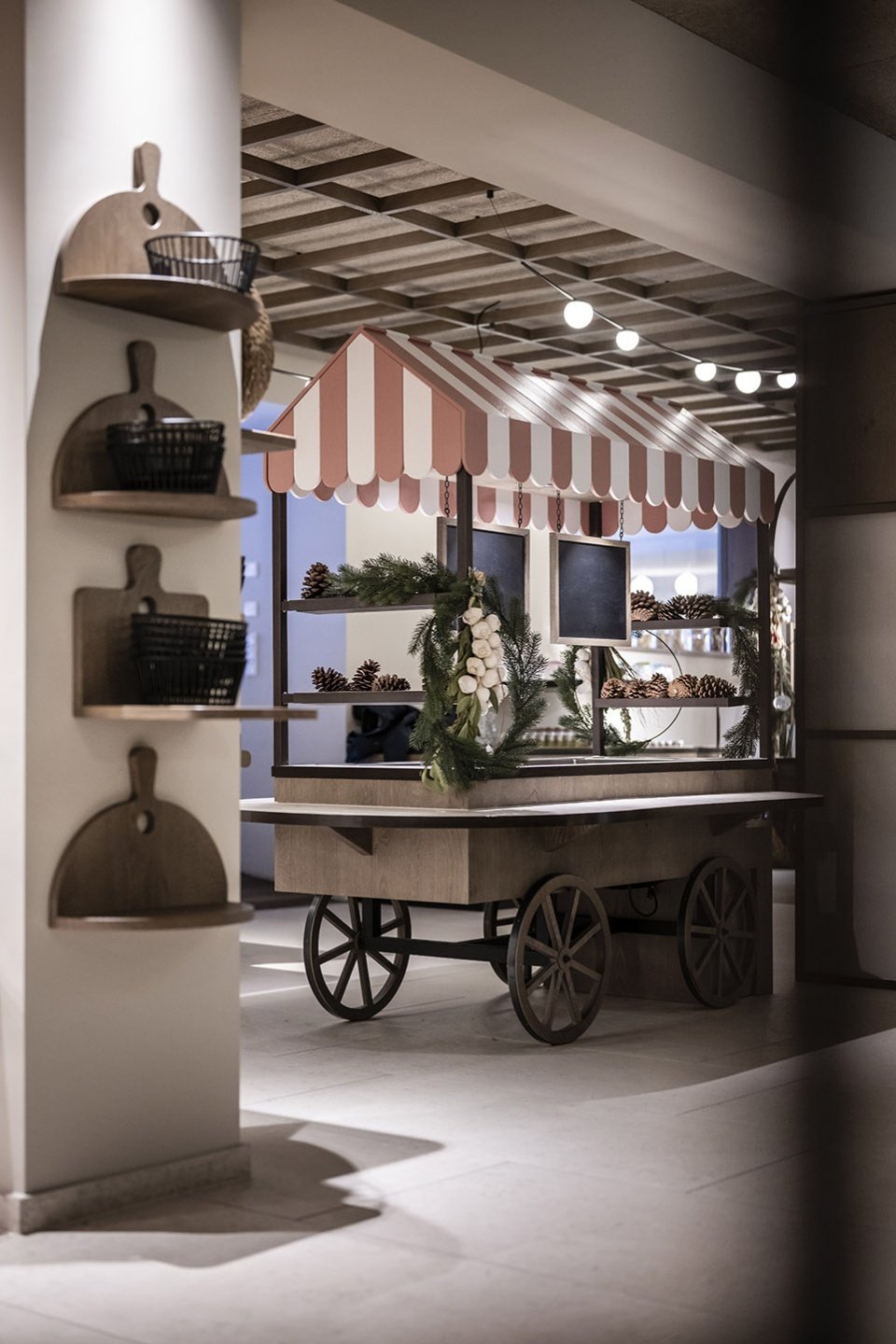

▼酒店公共区域，Public area©Alex Filz

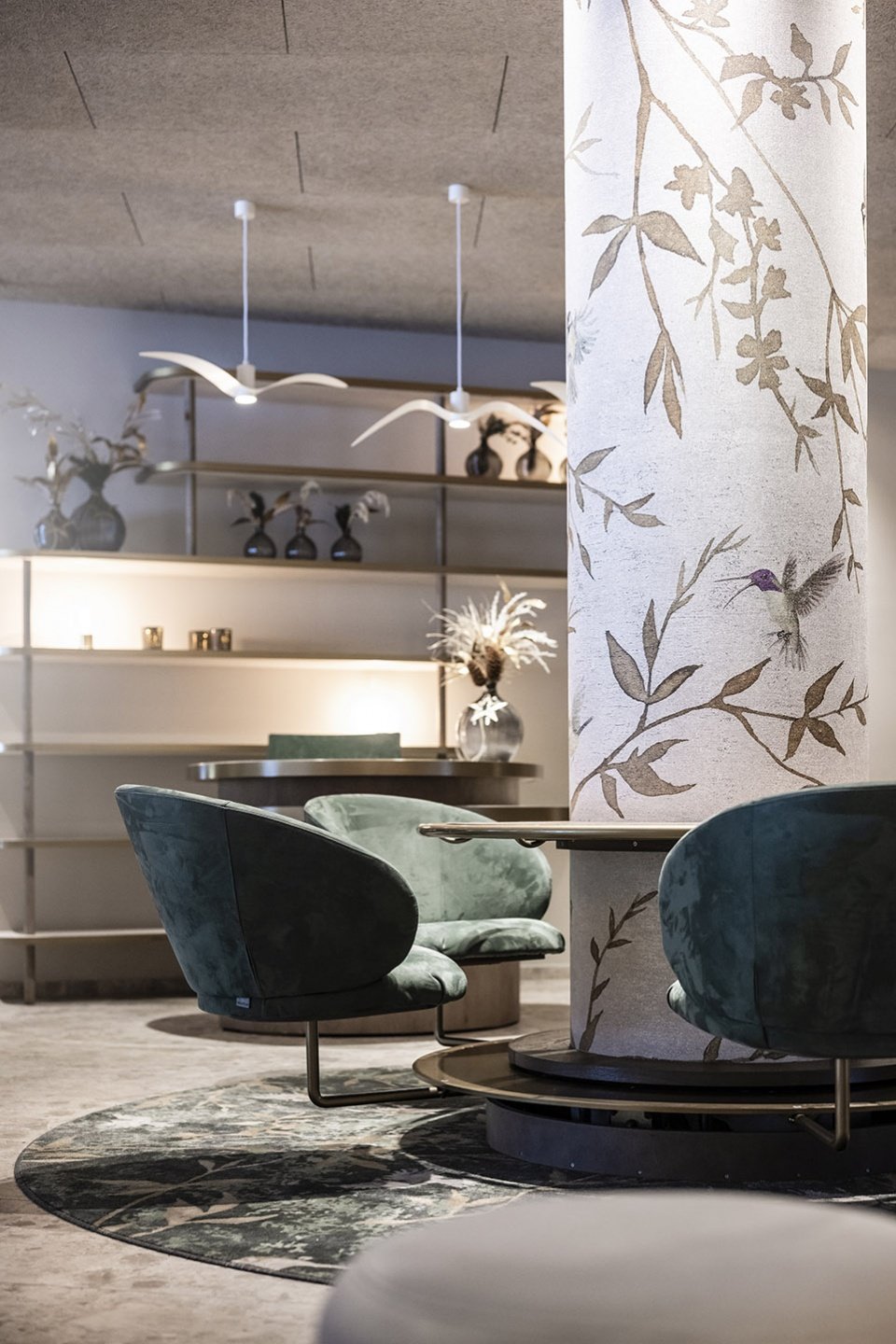

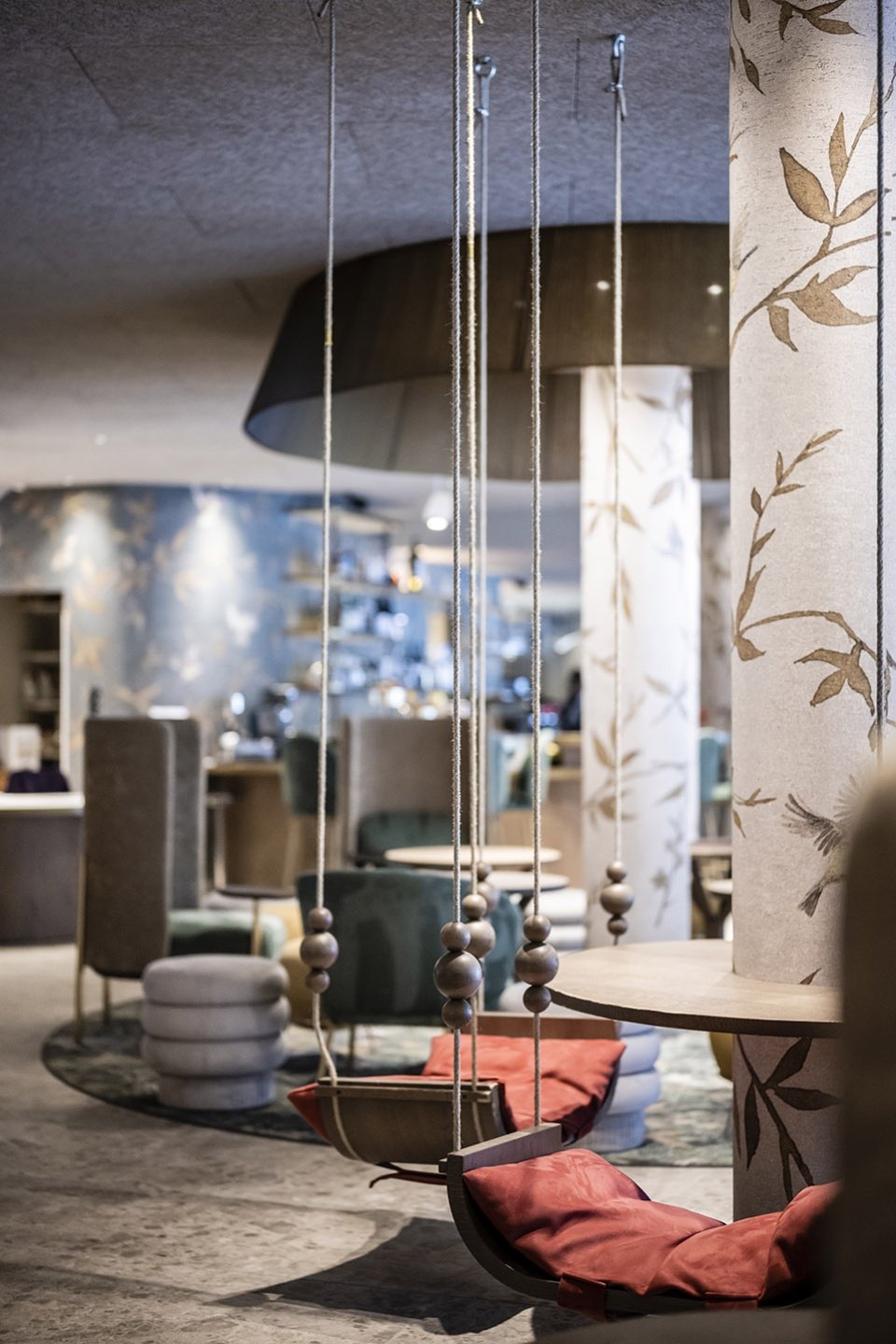

▼座位细节，Seating area©Alex Filz

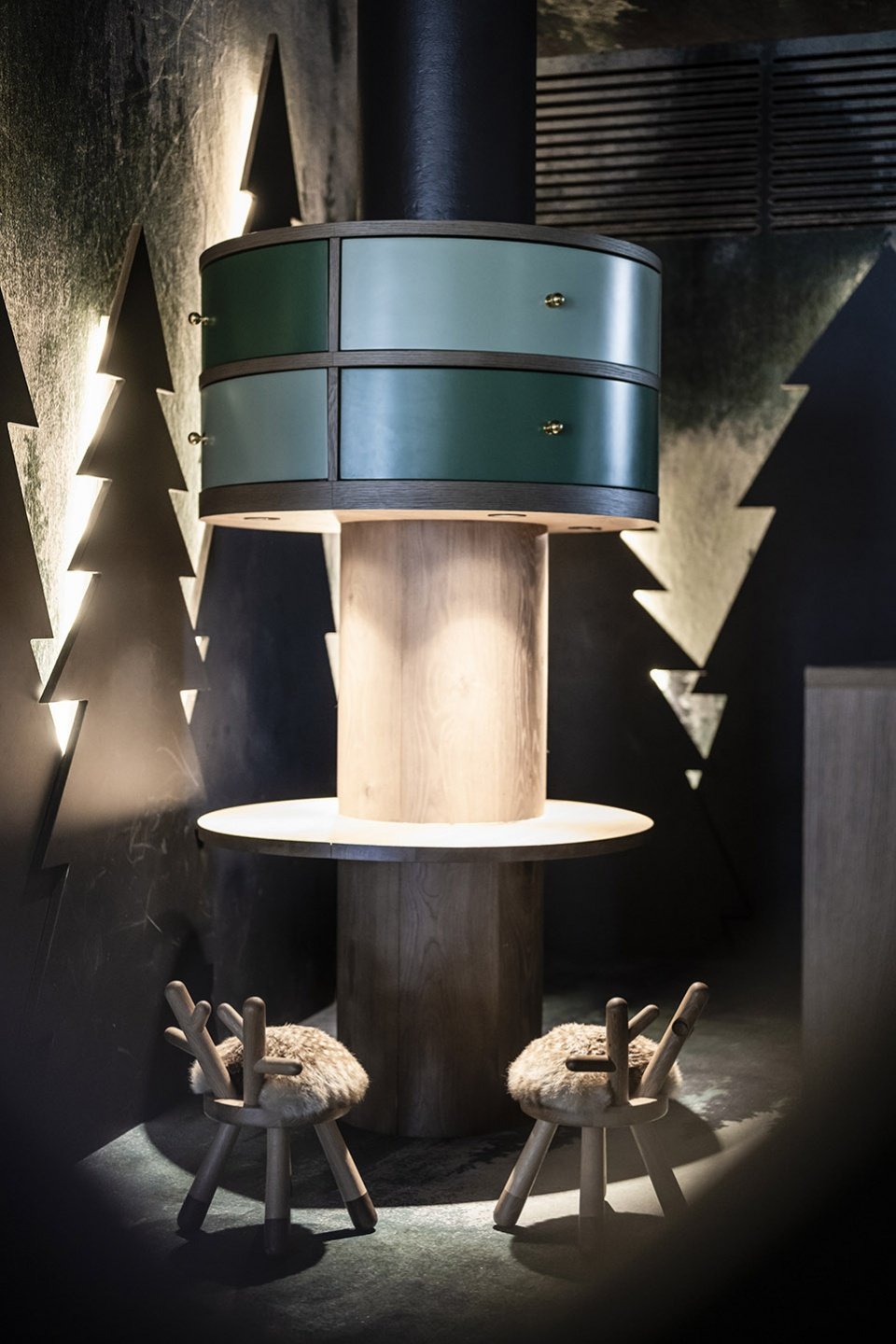

▼酒店内饰细节，Interior details©Alex Filz

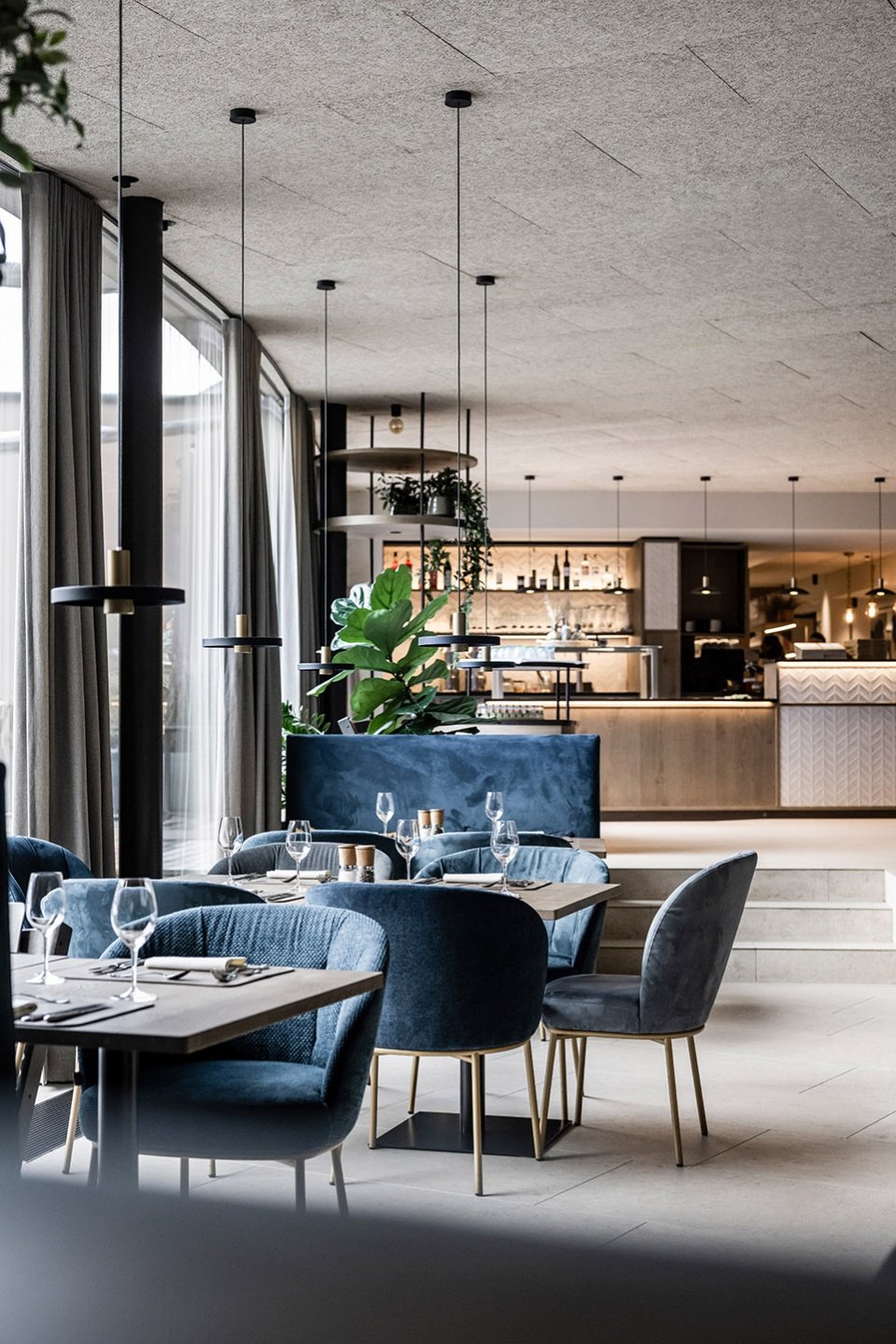

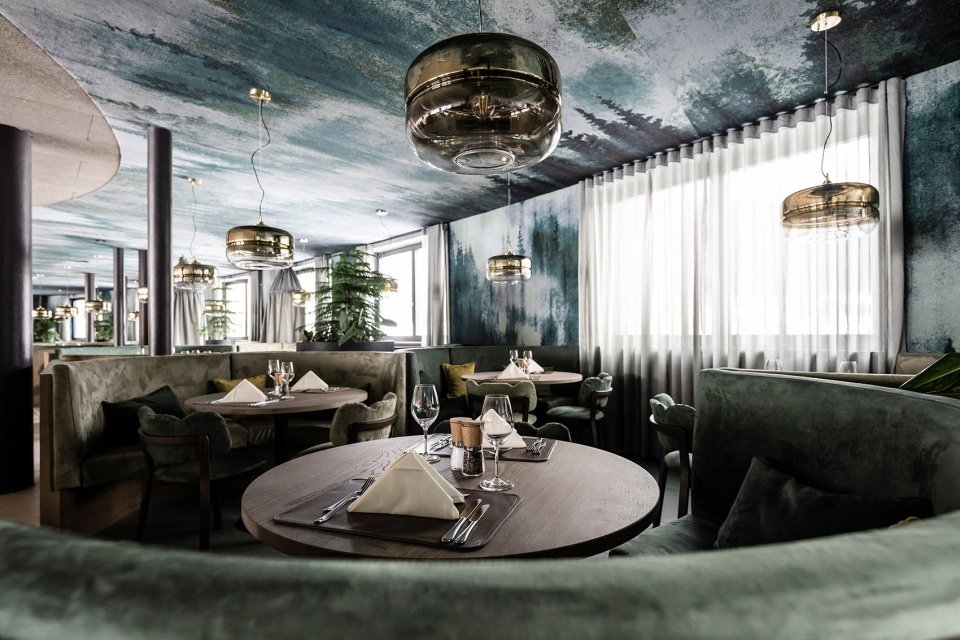

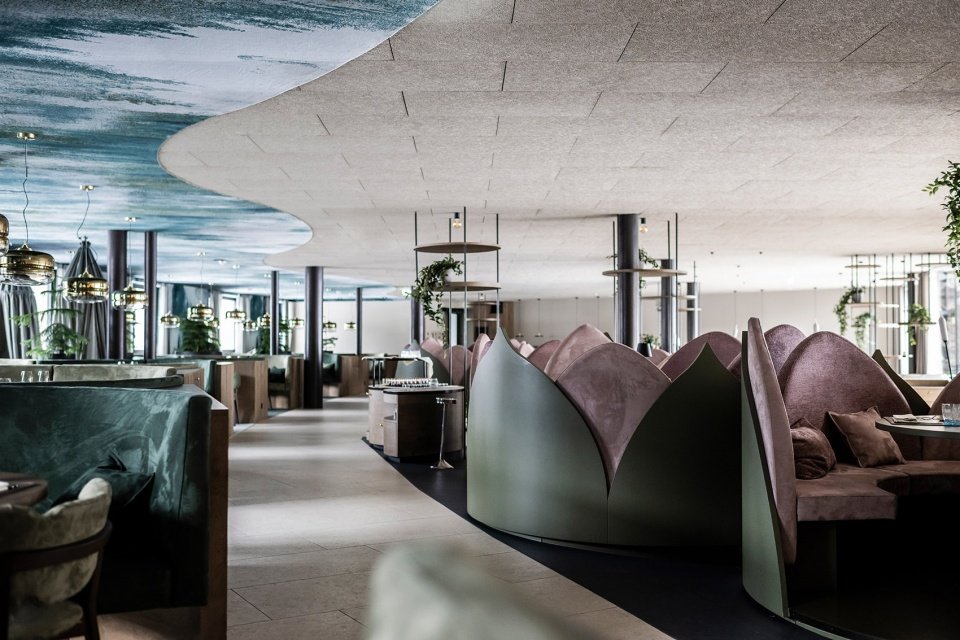

▼餐厅，Restaurant©Alex Filz

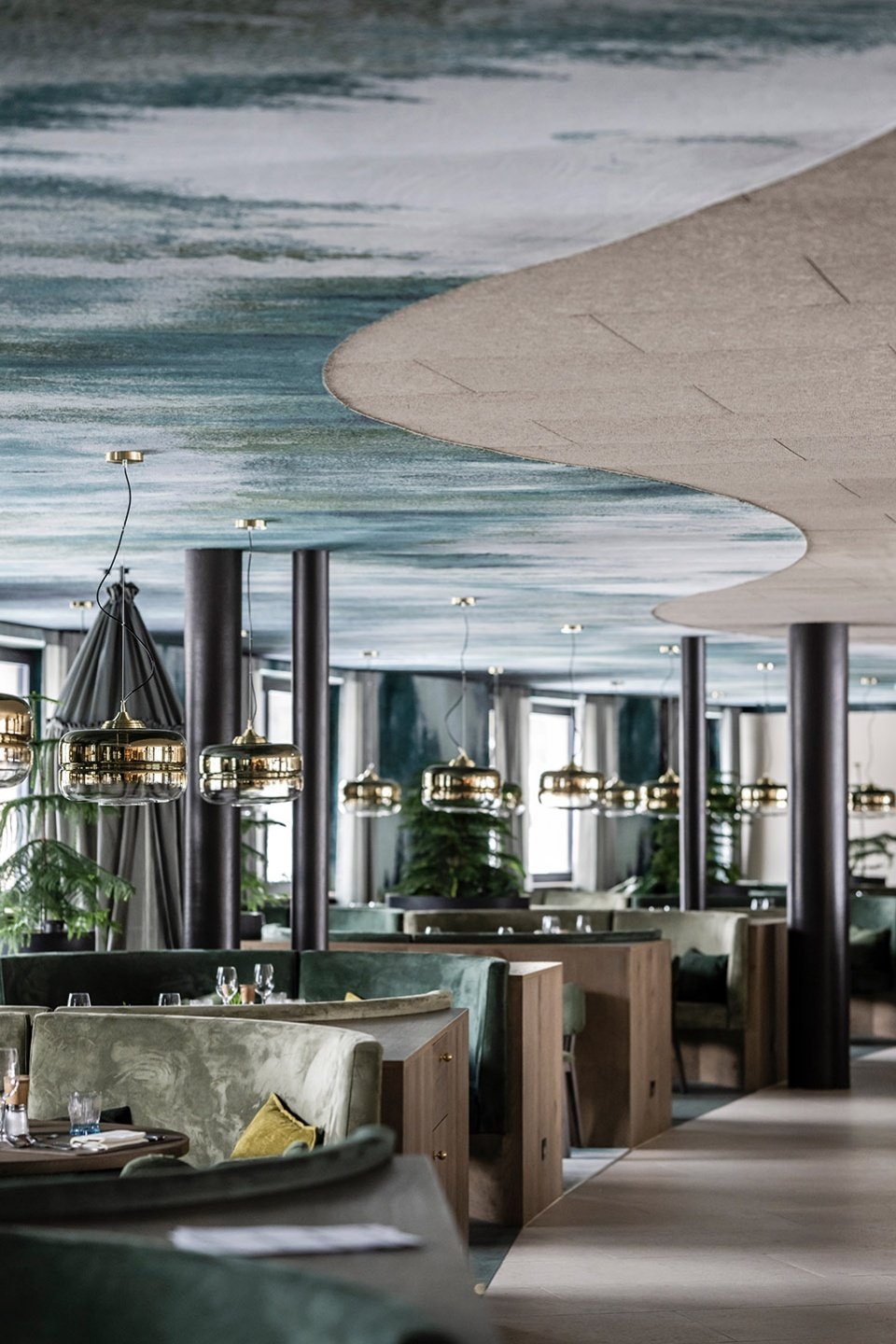

▼餐厅用餐区，Dining area©Alex Filz
▼酒店建筑群夜景，Hotel complex night view©Alex Filz

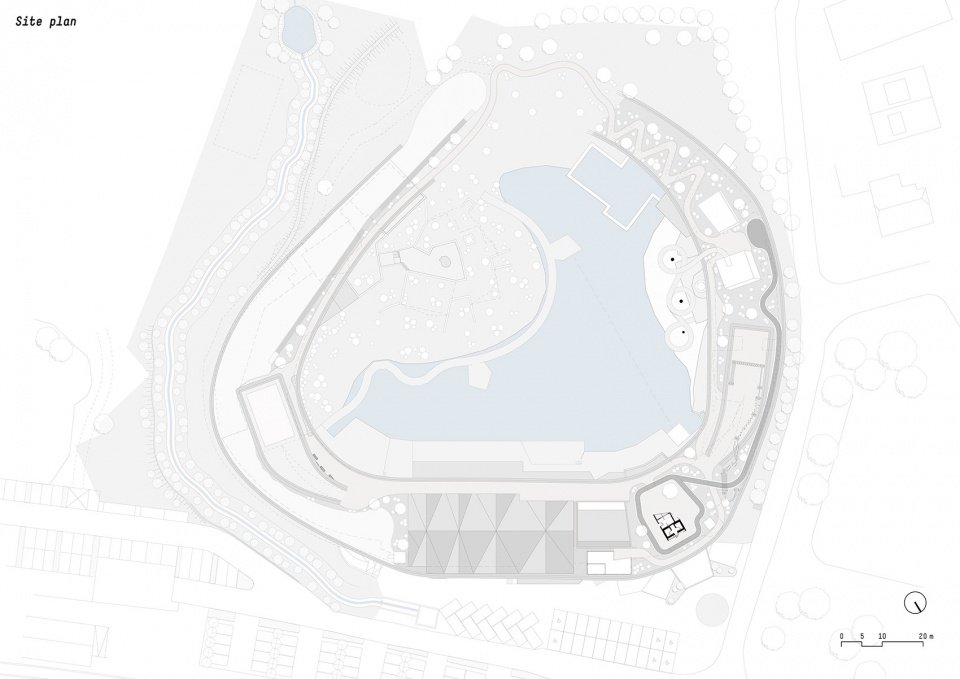

▼场地平面图，Site plan© noa*

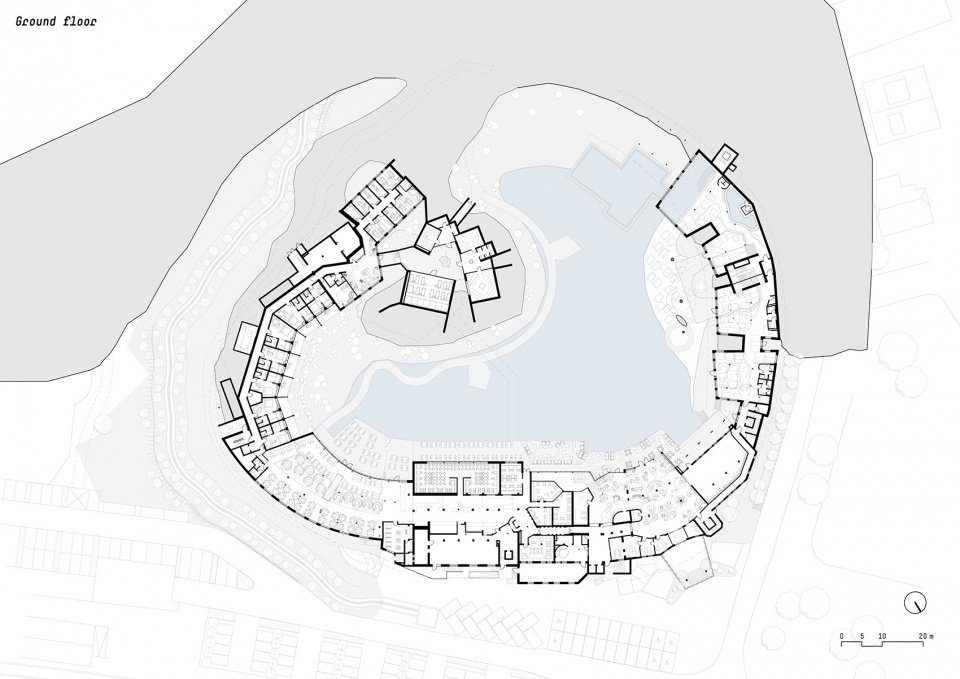

▼首层平面图，Ground floor plan© noa*
▼二层平面图，First floor plan© noa*
▼三层平面图，Second floor plan© noa*

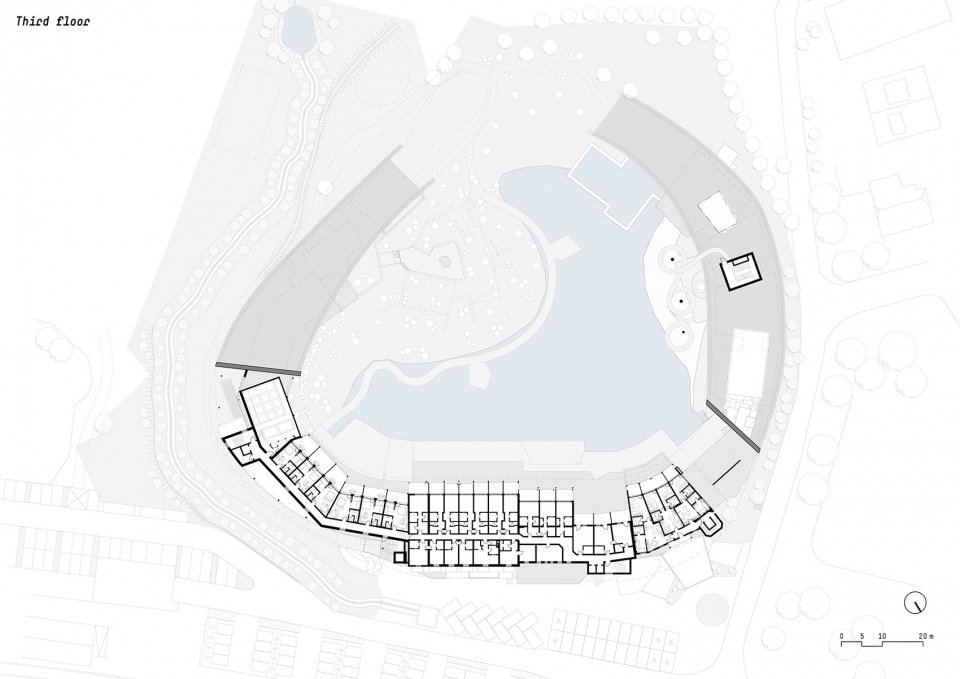

▼四层平面图，Third floor plan© noa*

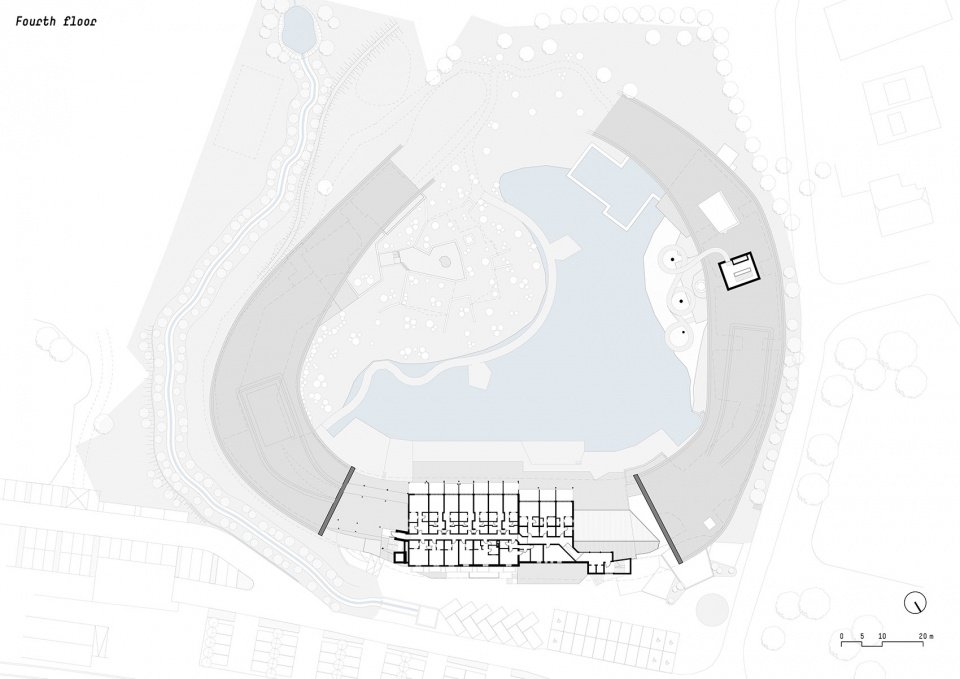

▼五层平面图，Fourth floor plan© noa*
▼纵剖面图，Longitudinal section© noa*

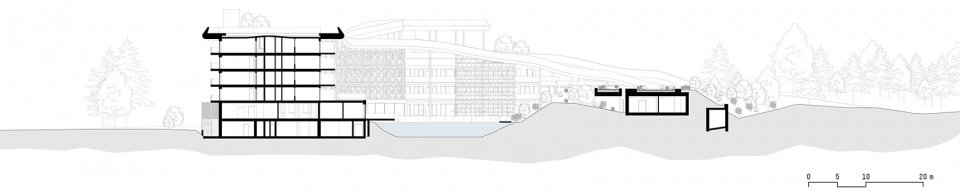

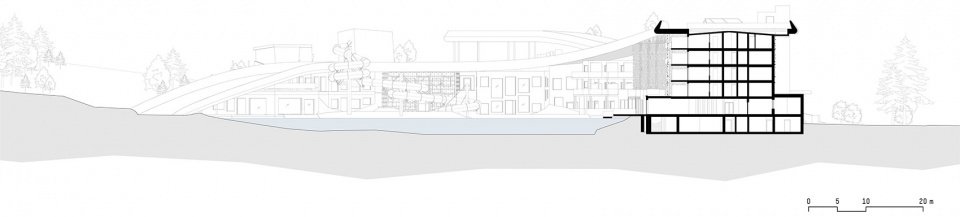

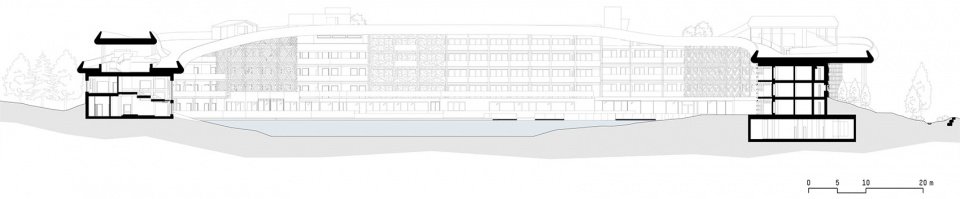

▼横剖面图，Cross section A© noa*
▼横剖面图B，Cross section B© noa*
Project name: Falkensteiner Family Resort Lido
Typology: Hotel
Location: Ehrenburg/Casteldarne, Pustertal Valley, South Tyrol
Client: Falkensteiner Hotels & Residences
Construction start: November 2020
Completion: December 2021
Intervention: Architecture & Interior Design Renovation, extension
Project volume: 29,300 m3
Gross project area (garage and technical spaces excluded): 6,000 m2
Text: Laura Ragazzola
Translations: Landoor
Photographs: Alex Filz
